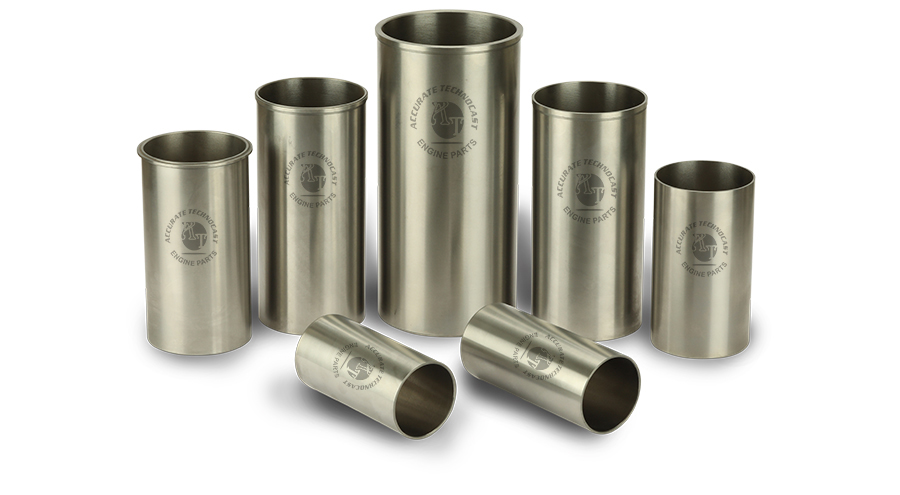

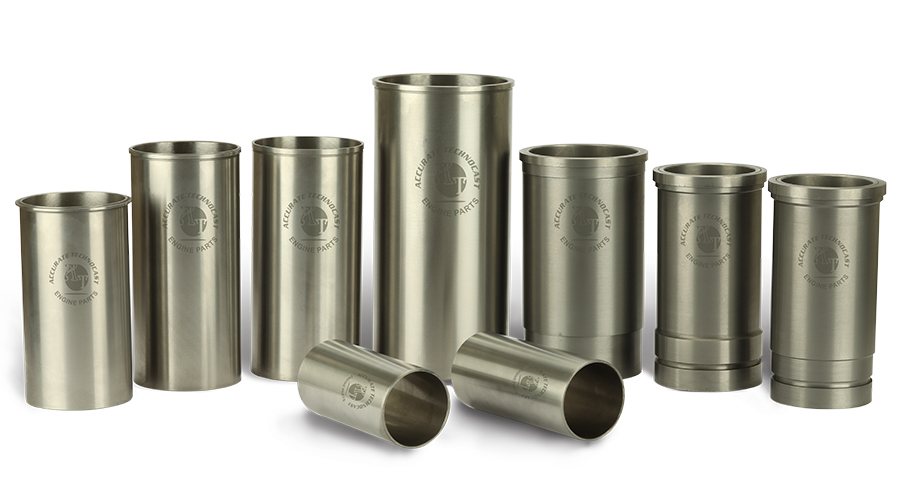

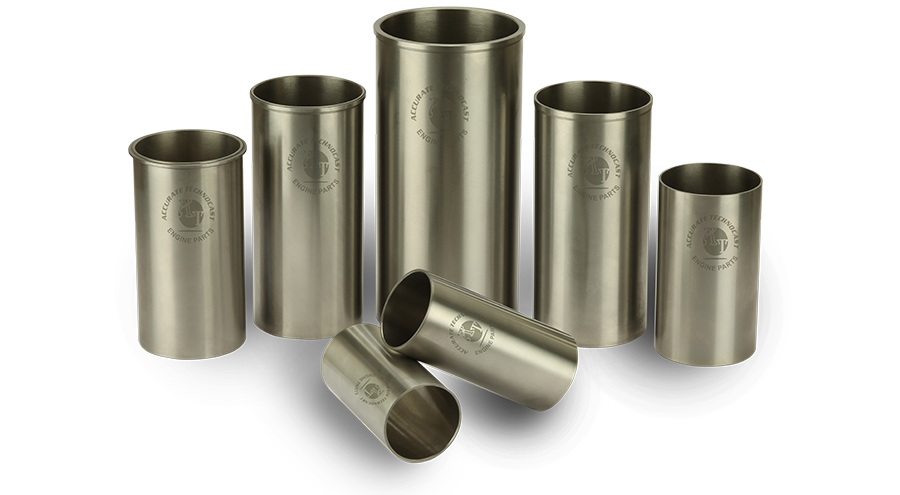

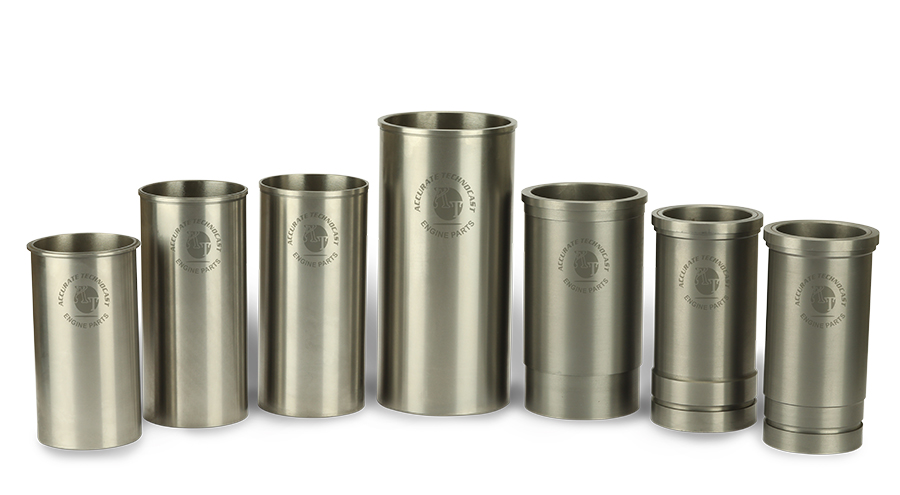

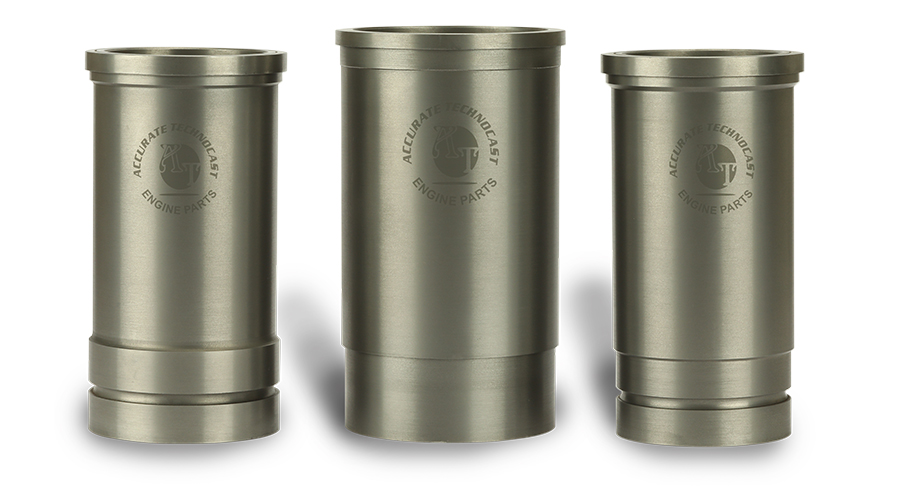

Cylinder Liners & Sleeve


We are a well-established Cylinder Liners Manufacturer and Cylinder Liners Suppliers.

We Design wide range of cylinder liners and Sleeves for various application like Automobiles, Generators and Commercial Vehicle.

All of our cylinder liners are manufactured to meet all race and high performance engine applications.

In addition to this, our cylinder liners are one of the cost effective items. we are also cylinder liner and sleeves Exporters.


Known for having good casting and machining qualities, offered sleeves are designed by our proficient professionals in line with industry quality standards using high grade raw material and cutting edge technology.

We offer high quality cylinder liners for various industries engaged in the manufacture of Motor Cycles, Scooters, Cars, Commercial Vehicles and Diesel Engines, Tractors, Industrial and Agricultural Engines, Air Compressors and other moly hard liners. Apart from this wide range of cylinder sleeves is available for different types of diesel engines,marine engines,tractor and automotive engines and there models.

These sleeves have been made using the best technology available in the market and they have been priced at very reasonable rates in the market. They are priced at very reasonable rates in the market and offer a high performance to the customers.


Product Specifications

# Diameter Range (in mm)
1 Inner Diameter 65 to 150
2 Outer Diameter 70 to 170
3 Total Length Up to 350

Technical Specifications

# Material specification standards
1 India HT200, HT250, HT300
2 Japan FC200, FC250, FC300

Hardnes

# Hardnes Minimum Maximum
1 Hardnesh 210 BHN 250 BHN

Finishes

Semi-finished & Fully-finished

# Chemical Composition Minimum Maximum
1 Carbon 2.80 3.50
1 Silicon 1.80 2.50
1 Chrome 0.15 0.25
1 Manganese 0.6 1.00
1 Phosphorus 0.20 0.50
1 Sulphur 0.00 0.12

Products Range

  • BEFORD
  • FIAT
  • ISUZU
  • LEYLAND
  • KIA
  • NISSAN
  • PEUGEOT
  • ROVER
  • YANMAR
  • CATERPILLAR
  • FORD
  • MESSAY FERGUSON
  • LISTER
  • MERCEDES
  • DATSUN
  • RENAULT
  • SUZUKI
  • ZETOR
  • CUMMINS
  • HINO
  • CUMMINS
  • MARUTI
  • MITSUBISHI
  • PERKINS
  • RVI
  • TOYOTA
  • DAIHATSU
  • HYUNDAI
  • KOBATA
  • MAZDA
  • NEW HOLLAND
  • PETTER
  • ROMANIA
  • VOLKSWAGEN
  • TATA
  • VOLVO
